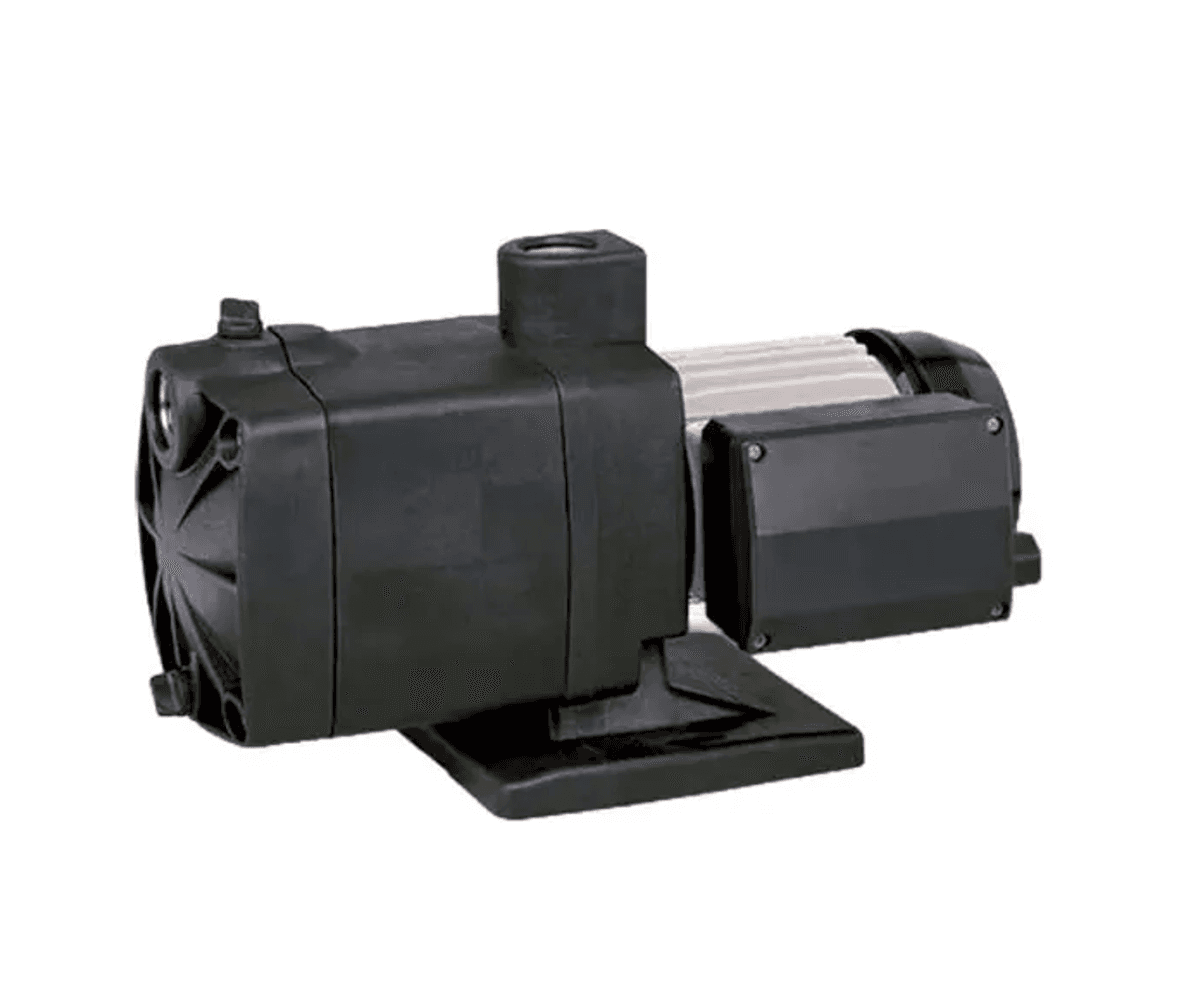

Saltvannspumpe 4 SW M is a multi stage self-priming pump suitable to manage swimming pool with chlorine water or sea water and for gardening and irrigation activities in residential building service. Designed to work in conjunction with hydraulic cleaners for swimming pools even when salt water is present. Equipped with four technopolymer impellers. Available only in single-phase version with built-in thermoamperometric protection. Power cable with plug included.
Technopolymer pump body, motor support, impellers, diffusers and diffuser body. All the metal parts in contact with water are made of AISI 316 stainless steel. Rotor shaft, impeller fastening nut. Carbon/ceramic mechanical seal and AISI 316 stainless steel mechanical parts. Continuous service asynchronous single phase motor. Built-in thermal-amperometric protection and permanently connected capacitor.

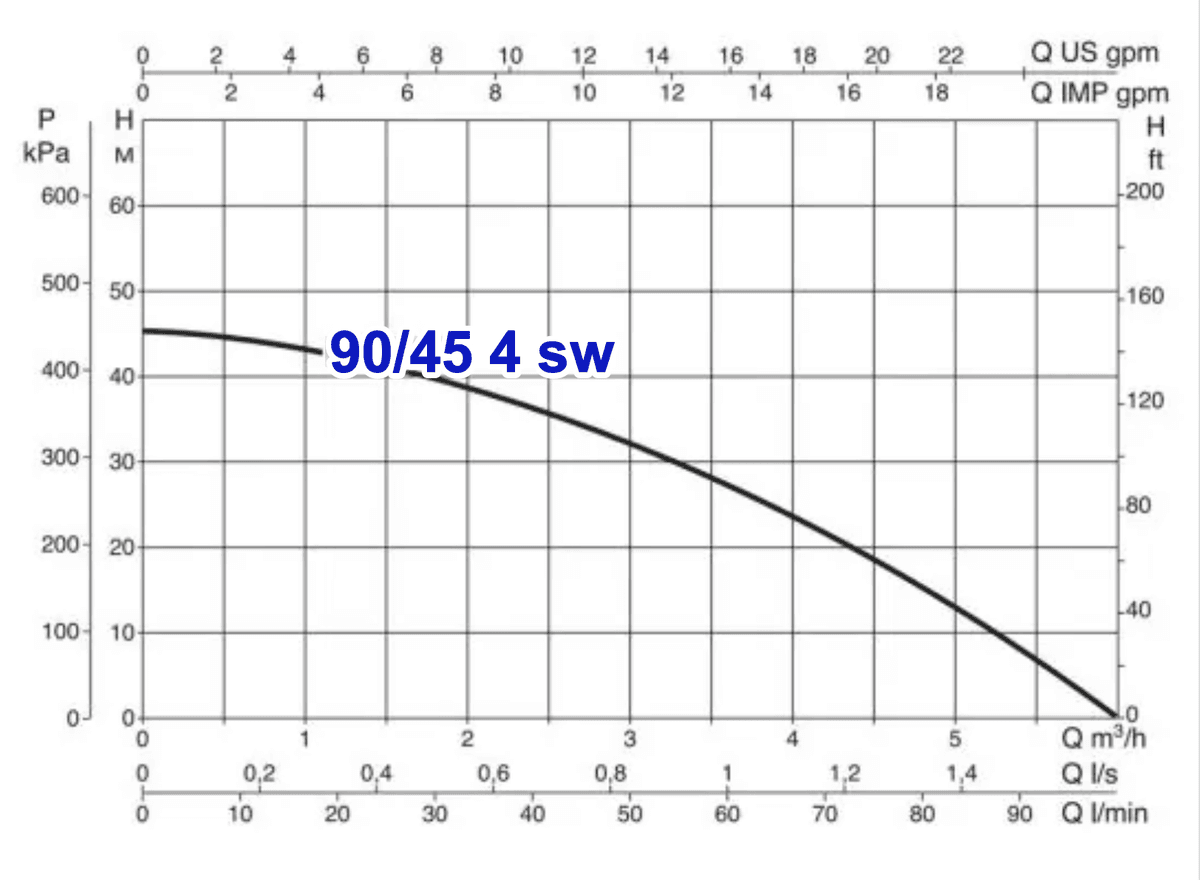

- Operating range: capacity up to 90 l/min; head up to 46 m.
- Liquid temperature range: from 0 deg C to +35 deg C for domestic use. from 0 deg C to +40 deg C for other uses.
- Pumped liquid: Designed to specifically pump salt water.
- Maximum suction capacity: 8 metres.
- Maximum ambient temperature: +40 deg C.
- Protection class: IPX4.
- Insulation class: F.
- Installation: fixed or portable, horizontal position.
- Special versions on requests: alternative voltages and/or frequencies.
